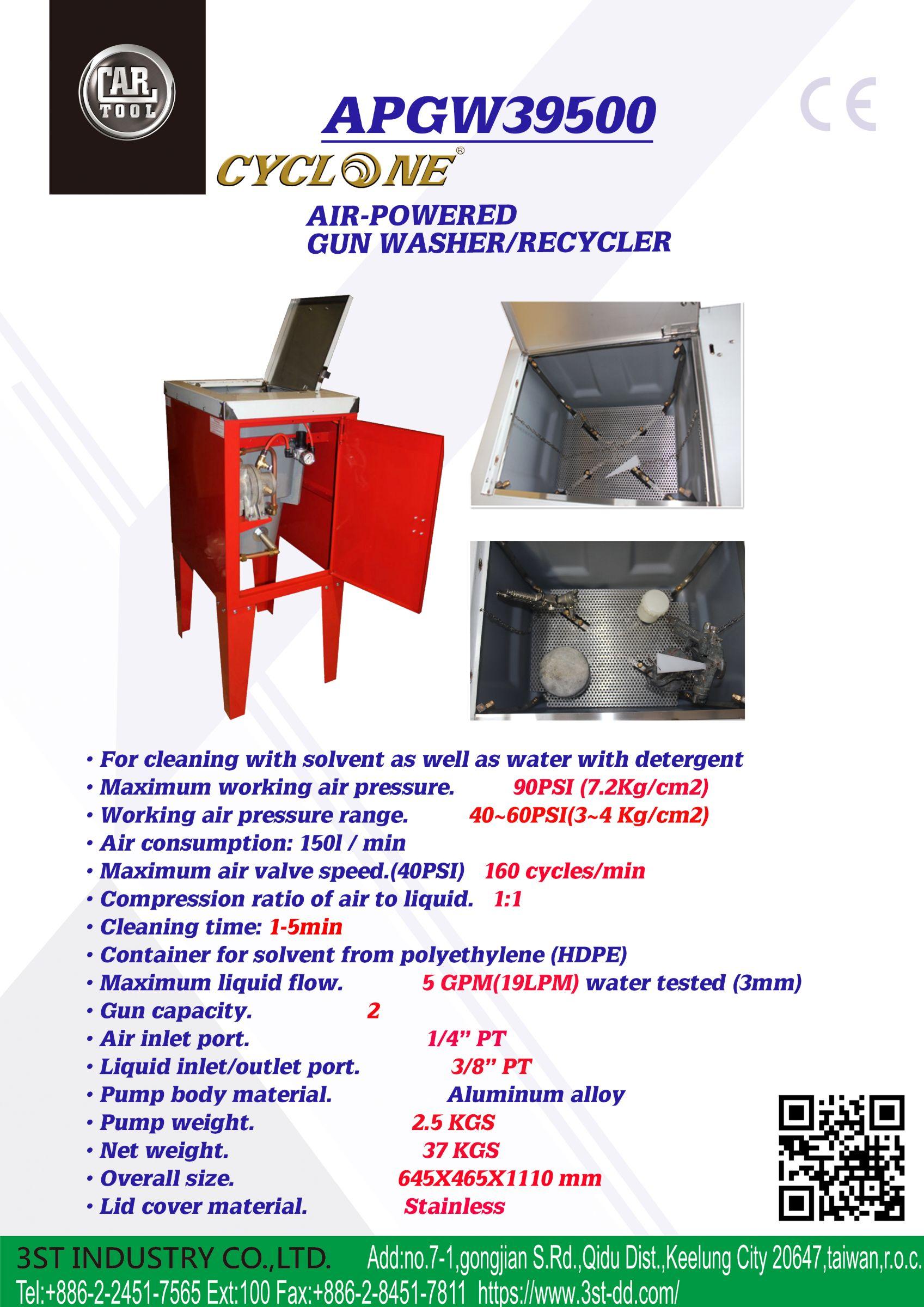

Description
For cleaning with solvent as well as water with detergent
• Maximum working air pressure.:90PSI (7.2Kg/cm2)
• Working air pressure range.40~60PSI(3-4 Kg/cm2)
• Air consumption: 150l / min
• Maximum air valve speed.(40PSI) : 160 cycles
• Compression ratio of air to liquid. : 1:1
• Cleaning time : 1-5min
•Container for solvent from polyethylene (HDPE)
• Maximum liquid flow 5GPM(19LPM) water tested (3mm)
• Gun capacity. : 2PCS
• Air inlet port.: 1/4″ PT
– Liquid inlet/outlet port.: 3/8″ PT
• Pump body material.: Aluminum alloy
• Pump weight.: 2.5 KGS
• Net weight.: 37 KGS
• Overall size.: 645*465*1110 mm
• Lid cover material.: Stainless
